pulp filter mesh stainless steel wire mesh H575 manufacturer from China Anping Haitong Wire Mesh Company

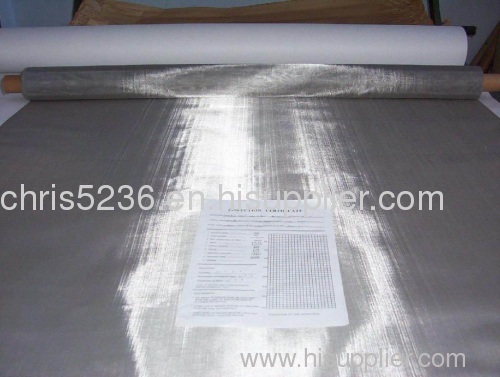

pulp filter mesh stainless steel wire mesh

Price:	5.0~20.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: H575

Production Capacity: 3000sq

Delivery Date: 20 days after we get your o...

Type: Weave Wire Mesh

Brand Name: HT

Place of Origin: Hebei, China (Mainland)

Wire Diameter: 0.015-3.5mm

product: stainless steel papermaking...

Woven pattern: plain, twill, dutch weave

Means of Transport: Ocean

Packing: inside plastic outside weav...

Application: Woven Wire Mesh

Material: Stainless Steel Wire

Mesh Size: 1Mx30M

Weave Style: plain, twill, dutch weave

Technique: Woven

Materials: SUS302,304,316,304L,316L,31...

pulp filter mesh stainless steel wire mesh
usage: pulp filter
wire: 0.015-3.5mm
mesh: 1-600 mesh
width: 0.5-6m

Stainless steel paper making wire mesh

Paper making mesh is made from high qualityphosphorus wire, bronze wire, brass wire, stainless steel wire, and polyesterwire.

There are square hole, rectangular hole, and tabby mesh.Paper-making mesh can be divided into single mesh, and doublemesh.

Paper-making mesh has the performance ofanticorrosive, and wear-resistance. Paper-making is used as round mesh and longmesh in paper-making industry, and as screen and filter in other industrialdepartment.

Mesh/Inch	Wire Diameter	Aperture	Open Area	Weight(LB)/ 100 Square Foot
Inch	MM	Inch	MM
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63
