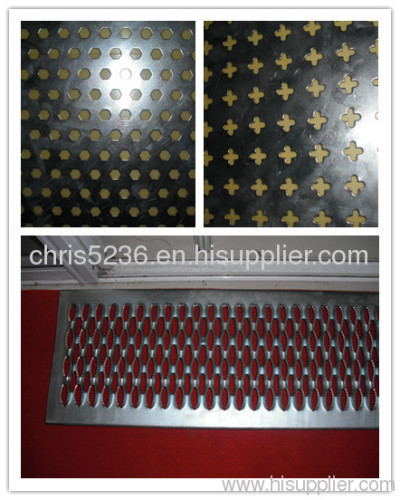

decorative perforated metal mesh ] stainless steel perforated metal mesh C627 manufacturer from China Anping Haitong Wire Mesh Company

decorative perforated metal mesh ] stainless steel perforated metal mesh

Price:	10.0~30.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: C627

Production Capacity: 3000sq/week

Delivery Date: 20 days after your money re...

Type: plate

Brand Name: C627

Name: perforated metal mesh

Chemical composition: metal steel

Open area: 0.3%-63%

Usage: filter

Means of Transport: Ocean

Packing: waterproof paper and wooden...

Application: mine,medicine,sieving,grain...

Material: ss202,304,304L,316,316L

Mesh Size: as your requirements

Shape: as your requirements

Thickness: 0.3mm-110mm

Hole dia: 1mm-6mm

stainless steel perforated metal mesh
stainless steel perforated metal
SS perforated metal mesh
SS perforated metals...
Type: Perforated M

stainless steel perforated metal mesh
stainless steel perforated metal
SS perforated metal mesh
SS perforated metals...
Type: Perforated Mesh

The Perforated sheets can be used with advantage in many situations, for instance when requiring sound reduction, weight saving, air control, filtering, a decorative surface, or simply a non-skid effect.
Based on their many qualities, perforated sheets are well suited for sorting, facades, ceilings, lamps, shelves, shielding, steps and of course many other purposes as well.

Stainless Steel Perforated Metal- Type 304/316

Hole Diameter		Staggered Centers	Sheet Thickness		Open Area
0.033 In.	0.84mm	0.055«	0.0165-0.0198 IN.	0.40-0.50mm	28.00%
0.045 In.	1.14mm	0.066«	0.0165-0.0198 IN.	0.40-0.50mm	37.00%
1/16 In.	1.59mm	3/32 In.	0.026-0.053 IN.	0.66-1.35mm	41.00%
1/16 In.	1.59mm	1/8 In.	0.046-0.053 IN.	1.17-1.36mm	23.00%
3/32 In.	2.38mm	9/64 In.	0.054-0.065 IN.	1.37-1.65mm	40.30%
3/32 In.	2.38mm	5/32 In.	0.026-0.079 IN.	0.66-2.00mm	33.00%
3/32 In.	2.38mm	1/4 In.	0.033-0.053''	0.84-1.35mm	12.50%
1/8 In.	3.17mm	3/16 In.	0.026-0.129''	0.80-2.89mm	40.00%
1/8 In.	3.17mm	7/32 In.	0.026-0.039''	0.66-0.99mm	29.60%
5/32 In.	3.97mm	3/16 IN.	0.026-0.065''	0.66-1.65mm	63.00%
3/16 In.	4.76mm	1/4 IN.	0.026-0.079''	0.66-2.00mm	50.00%
3/16 In.	4.76mm	5/16 IN.	0.029'', 0.059''	0.73mm, 1.50mm	32.00%
1/4 In.	6.35mm	5/16 IN.	0.026-0.079''	0.66-2.00mm	58.00%
1/4 In.	6.35mm	3/8 IN.	0.012'', 0.026-0.065''	0.30mm, 0.66-1.65mm	40.00%
1/2 In.	12.70mm	11/16 IN.	0.059'', 0.121''	1.50mm, 3.00mm;	48.00%
